ZEISS Axiolab 5 - smart microscope for more efficient routine lab work

Smart microscope for more efficient routine lab work.

Automated Light Manager
Automated Objective Detection
Image Capture Button on Microscope Body
4K-Camera with Ultra HD Resolution

Grouped product items
Product Name	Qty
ZEISS Axiolab 5 for brightfield and phase contrast with objectives A-Plan 5x and N-Achroplan 10x Ph1 and 40x Ph2 with phototube, incl. Axiocam 208 ZAL5-0002
ZEISS Axiolab 5 for LED fluorescence in combination with brightfield with objectives N-Achroplan 5x, 10x, 40x and 100x with phototube, incl. Axiocam 202 mono ZAL5-0003
ZEISS Axiolab 5 for brightfield with objectives N-Achroplan 10x and EC Plan-Neofluar 63x with phototube, incl. Axiocam 208, for Haematology ZAL5-0004
ZEISS Axiolab 5 for brightfield with objective N-Achroplan 2.5x, 5x, 10x and 40x with photo tube, incl. Axiocam 208, for Pathology and Histology ZAL5-0005
ZEISS Axiolab 5 for brightfield with objective N-Achroplan 2.5x, 5x, 10x and EC Plan-Neofluar 40x with Ergofototuben, incl. Axiocam 208, for Cytology ZAL5-0006
ZEISS Axiolab 5 for brightfield with objective N-Achroplan 10x, 40x,50x and 100x phototube, incl. Axiocam 208, for Microbiology ZAL5-0007
ZEISS Axiolab 5 for brightfield with lens A-Plan 5x, 10x and 40x with phototube, incl. Axiocam 208 ZAL5-0001
ZEISS Axiolab 5 for LED fluorescence in combination with brightfield with objectives N-Achroplan 10x, 40x, 50x and EC Plan-Neofluar 100x with photo tube, incl. Axiocam 208 color, for Microbiology - with Fluorescence ZAL5-0008

Further Information

Product Details

Description

The smart microscope for more efficient routine lab work

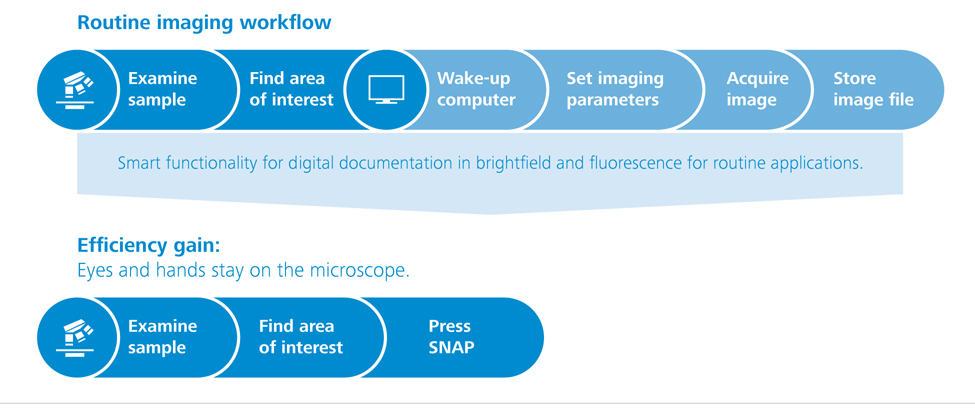

Axiolab 5 is made for the daily work in your lab. Combine it with Axiocam 208 color and take full advantage of the smart microscopy concept: you’ll be experiencing a completely new way of digital documentation. Just focus your sample and press a single button for crisp images in true color. The digital image will look exactly like you see it through the eyepieces, with all the details and subtle color differences clearly visible. Plus, Axiolab 5 automatically adds the correct scaling information to your images. All of this works without a PC or separate controller. Digital documentation has never been easier and faster.

Specifications:

Tripod equipment and accessories

Nosepiece 6x Coded
Filter wheel 6-fold for filters with diameter 36 mm in DL
Control button for Eco Mode and Light Manager
Snapshot function supports ZEISS Axiocam
USB 2.0 interface
Eyepieces 10x/23 Br. Foc
Camera adapter 60N-C 2/3" 0.5x

Overview of the possible variations:

	Methods	Objectives	Condensor	Illumination	Camera	Specials
ZAL5-0001	Brightfield	A-Plan 5x, 10x, 40x	0,9/1,25 B	LED	Axiocam 208 color	optional HAL 35W achromatic-aplanatic 0,9 B
ZAL5-0002	Brightfield/ Phase	A-Plan 5x, N-Achroplan 10xPh1, 40xPh2	0,9/1,25 B	LED	Axiocam 208 color	optional HAL 35W
ZAL5-0003	Brightfield/ Fluorescence	N-Achroplan 5x, 10x, 40x, 100xOil	0,9/1,25 B	LED	Axiocam 202 mono	Fluorescence-LED, Ex385nm, Ex470nm, Ex565nm optional HAL 35W
ZAL5-0004	Brightfield/ Optional POL	N-Achroplan 10x, EC-Plan-Neofluar 63x	achromatic-aplanatic 0,9 B	LED	Axiocam 208 color	For Haematology, optional HAL 35W, Ergotubus, further Objectivs, POL
ZAL5-0005	Brightfield	N-Achroplan 2,5x, 5x, 10x, 40x	0,9/1,25 B, Overview 2,5x/4x	LED	Axiocam 208 color	For Phatology/ Histology, optional HAL 35W, Ergotubus, further Objectivs, POL
ZAL5-0006	Brightfield	N-Achroplan 2,5x, 5x, 10x , EC Plan-Neofluar 40x	0,9/1,25 B, Overview 2,5x/4x	LED	Axiocam 208 color	For Zytology, Ergotubus
ZAL5-0007	Brightfield	N-Achroplan 10x, 40x, 50x Oil, 100xOil	achromatic-aplanatic 0,9 B D Ph DIC	LED	Axiocam 208 color	For Microbiology, optional HAL 35W, further Objectivs, PlasDIC
ZAL5-0008	Brightfield/ Fluorescence	N-Achroplan 10x,40x,50xOil, EC Plan-Neofluar 100xOil	achromatic-aplanatic 0,9 B D Ph DIC	LED	Axiocam 202 mono	For Microbiology, Fluorescence-LED, Ex 470nm, optional HAL 35W, further Objectivs
