Stage Micrometers & Calibration Scales
(51)-
Starting at €519.80 €618.56

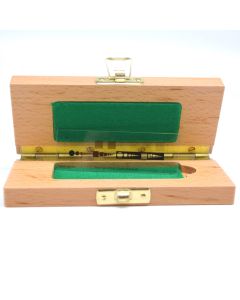

PS20 Universal Calibration Slide for machine vision, 3D scanner and image analysis systems with engraved serial number. 13 different calibration structures. UKAS certificate available also for individual patterns, please advise for which structures.Starting at €519.80 €618.56
-
Starting at €292.10 €347.60
The new S18 brightfield stage micrometer has 1” and 25mm scales that are subdivided to provide calibration for various microscope magnifications.Starting at €292.10 €347.60
-
€291.03 €346.33Art.Nr: PY68048-07The England Finder is a glass microscope slide 75mm x 26mm (3x1") with a uniquely indexed grid pattern that allows individual areas of interest to be referenced.€291.03 €346.33 -
Starting at €435.53 €518.28
Mikrometer Scala 20mm in 0,01mm Teilung.This scale is etched through highly reflective vacuum coated metal. When viewed under vertical illumination, as with a metallurgical microscope, the scale appears black against a bright background. The glas discs are mounted in stainless steel slides.Starting at €435.53 €518.28
-
Starting at €329.31 €391.88
Type: horizontal, Length: 0,1", Nos. Div.: 100, Div. Size: 0,001". The glas discs are mounted in stainless steel slides.Starting at €329.31 €391.88
-
Starting at €365.52 €434.97
Type: horizontal, Length: 10mm, Nos. Div.: 100, Div. Size: 0,1mm. The glas discs are mounted in stainless steel slides.Starting at €365.52 €434.97
-
Starting at €265.70 €316.18
Type: horizontal, Length: 10mm, Nos. Div.: 100, Div. Size: 0,1mm.Starting at €265.70 €316.18
-
Starting at €265.70 €316.18
Type: horizontal, Length: 0,1", Nos. Div.: 100, Div. Size: 0,001".Starting at €265.70 €316.18
-
Starting at €265.70 €316.18

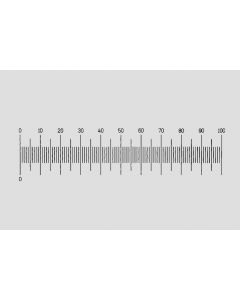

Type: horizontal, Length: 1,0mm, Nos. Div.: 100, Div. Size: 0,01mm.Starting at €265.70 €316.18
-
Starting at €265.70 €316.18
Type: Vertical Scale, Length: 2,0mm, Nos. Div.: 200, Div. Size: 0,01mm.Starting at €265.70 €316.18
-
Starting at €265.70 €316.18
Mikrometer Skala 5mm in 0,5mm Teilung, 2mm in 0,1mm Teilung, and 0,2mm in 0,01mm Teilung.Starting at €265.70 €316.18
-
Starting at €341.99 €406.97
A transmitted light stage micrometer with double scale: horizontal, Length 0.005“; Division: 0.0001“.
The scale is centred on a glass disc mounted in an aluminium slide 76mm x25mm x 1.5mm thick. Line width: 0.001mm. Accuracy (overall): <0.00005“.Starting at €341.99 €406.97
-
Starting at €370.53 €440.93
A transmitted light stage micrometer: horizontal, Length 0.005“; Division: 0.0001“.
The scale is centred on a glass disc mounted in an aluminium slide 76mm x25mm x 1.5mm thick. Line width: 0.001mm. Accuracy (overall): <0.00005“.Starting at €370.53 €440.93
-
Starting at €265.70 €316.18
A transmitted light stage micrometer: horizontal, Length 5mm; Division: 0.05mm.
The scale is centred on a glass disc mounted in an aluminium slide 76mm x25mm x 1.5mm thick. Line width: 0.005mm. Accuracy (overall): <0.0015mm.Starting at €265.70 €316.18
-
Starting at €435.53 €518.28
Mikrometer Scala 20mm in 0,01mm Teilung.This scale is etched through highly reflective vacuum coated metal. When viewed under vertical illumination, as with a metallurgical microscope, the scale appears black against a bright background. The glas discs are mounted in stainless steel slides.Starting at €435.53 €518.28
-
Starting at €329.31 €391.88
Mikrometer Scala 1mm in 0,01mm Teilung.This scale is etched through highly reflective vacuum coated metal. When viewed under vertical illumination, as with a metallurgical microscope, the scale appears black against a bright background. The glas discs are mounted in stainless steel slides.Starting at €329.31 €391.88
-
Starting at €469.30 €558.47
Type: Crossed Scale, Length: 1,0mm, Nos. Div.: 100, Div. Size: 0,01mm. The glas discs are mounted in stainless steel slides.Starting at €469.30 €558.47
-
Starting at €473.17 €563.07
Type: horizontal, Length: 0,1mm, Nos. Div.: 50, Div. Size: 0,002mm. The glas discs are mounted in stainless steel slides. The PS12 pattern is only available as a transmitted light version because it is not possible to etch away the chrome to give the very fine detail/definition that is required for 2µm divisions...Starting at €473.17 €563.07
-
Starting at €329.31 €391.88
Type: horizontal, Length: 1,0mm, Nos. Div.: 100, Div. Size: 0,01mm. The glas discs are mounted in stainless steel slides.Starting at €329.31 €391.88
-
Starting at €329.31 €391.88
Type: horizontal, Length: 0,1", Nos. Div.: 100, Div. Size: 0,001". The glas discs are mounted in stainless steel slides.Starting at €329.31 €391.88
-
Starting at €314.94 €374.78
Type: horizontal, Length: 10mm, Nos. Div.: 100, Div. Size: 0,1mm. The glas discs are mounted in stainless steel slides.Starting at €314.94 €374.78
-
Starting at €265.70 €316.18
Mikrometer Skala 1mm in 0,01mm Teilung.This scale is etched through highly reflective vacuum coated metal. When viewed under vertical illumination, as with a metallurgical microscope, the scale appears black against a bright background.Starting at €265.70 €316.18
-
Starting at €313.39 €372.93
Type: Crossed Scale, Length: 1,0mm, Nos. Div.: 100, Div. Size: 0,01mm.Starting at €313.39 €372.93
-
Starting at €370.53 €440.93
Type: horizontal, Length: 0,1mm, Nos. Div.: 50, Div. Size: 0,002mm.Starting at €370.53 €440.93
-
Starting at €241.61 €287.52
Type: horizontal, Length: 1,0mm, Nos. Div.: 100, Div. Size: 0,01mm.Starting at €241.61 €287.52
-
Starting at €265.70 €316.18
A transmitted light stage micrometer: horizontal, Length 1“; Division: 0.1“.
The scale is centred on a glass disc mounted in an aluminium slide 76mm x25mm x 1.5mm thick. Line width: 0.002mm. Accuracy (overall): <0.0001“.Starting at €265.70 €316.18
-
Starting at €241.61 €287.52
A transmitted light stage micrometer: horizontal, Length 10mm; Division: 0.1mm. The scale is centred on a glass disc mounted in an aluminium slide 76mm x25mm x 1.5mm thick. Line width: 0.005mm. Accuracy (overall): <0.002mm.
Starting at €241.61 €287.52
-
€291.03 €346.33Art.Nr: PY68045-290,01mm grid / 1,5 x 1,5mm overall.€291.03 €346.33 -
€291.03 €346.33Art.Nr: PY68045-280,01mm grid / 0,2 x 0,2mm overall.€291.03 €346.33
-
€278.07 €330.90Art.Nr: PY68045-10Counting Slide 0,05mm squares.€278.07 €330.90
All transmitted light versions are produced as a positive image, so opaque lines on a clear background. When the light is transmitted through the stage micrometer the scale image will appear with dark lines against a bright background. This is because no light can pass through the opaque lines, so they appear black.
When you use the same transmitted light stage micrometer on an incident/reflected light microscope, the light is reflected by the chrome lines but passes through the clear areas, thus the image will appear with bright lines against a dark background. Because the light also has some reflectance from the edges of the lines, the scale will appear very slightly less defined than when it is used with transmitted light.
The same will apply when a reflected light stage micrometer is used for transmitted light (all reflected light versions have clear lines on an opaque background).
