TEM Grids, Parallel bars, 4-Quadrant, various Marterials

TEM Grids, Parallel bars, 4-Quadrant, various Materials

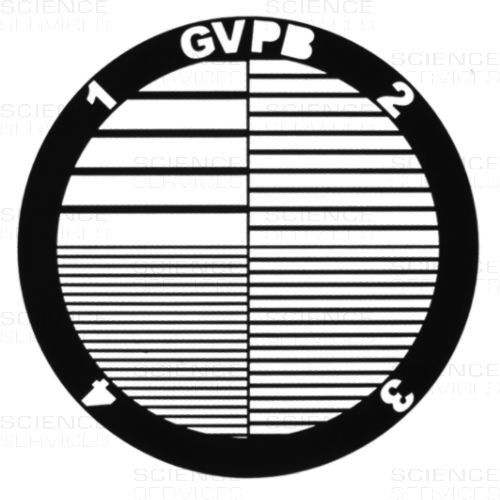

These Gilder TEM grids with parallel bars have 4 quadrants with different numbers of lines, which are separated from each other by crenellated bars. Depending on the sample thickness, areas with a lower number of lines can be viewed with lower magnification. The grids are available in copper, nickel and gold.

Grouped product items
Product Name	Qty
TEM Grids, Parallel bars, 4-Quadrant, Cu, 100 pieces G-GVPB-Cu €28.90 €34.39
TEM Grids, Parallel bars, 4-Quadrant, Ni, 100 piece G-GVPB-Ni €37.50 €44.63
TEM Grids, Parallel bars, 4-Quadrant, Au, 50 pieces G-GVPB-Au €70.10 €83.42

Product Details

Description

Grid Specifications, Type GVPB

Quadrant	1	2	3	4
Lines/Inch	~ 100	~ 200	~ 300	~ 400
Pitch (± 0.5 µ)	~ 250 µm	~ 120 µm	~ 83 µm	~ 62 µm
Bar Width	~ 65 µm	~ 45 µm	~ 40 µm	~ 35 µm
Hole Width	~ 185 µm	~ 80 µm	~ 43 µm	~ 27 µm

More Information

More Information
Mesh Size	variable Mesh
Mesh Style	parallel Bars
