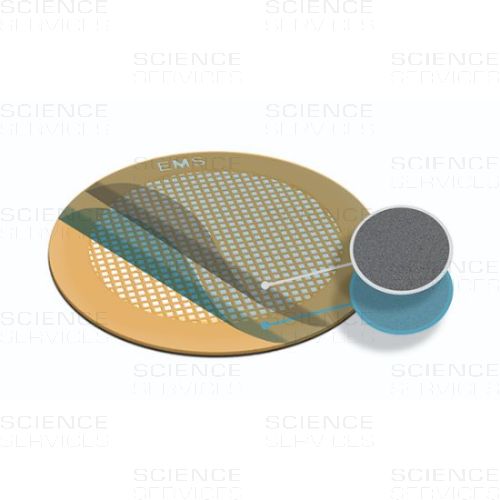

TEM Grids, Formvar/Carbon Film coated, 1000 Mesh, thin Bars, square, Cu
A formvar coated TEM grid, stabilized with evaporated carbon film. This type of coating is excellent for specimen support, especially for ultra thin sections. The thickness ranges from 5-50nm formvar and 1-30nm carbon. For detailed information see description.
Product Details
Description
Formvar/Carbon film thickness ranges:
| Option | Name | Formvar Film | Carbon Film | |
| Standard | Option A | SA | 10nm | 1nm |
| Standard | Option B |
SB | 10nm | 3-4nm |
| Standard | Option C |
SC | 10nm | 20-30nm |
| Ultra-Thin | Option A | UA | 5-6nm | 1nm |
| Ultra-Thin | Option B | UB | 5-6nm | 3-4nm |
| Ultra-Thin | Option C | UC | 5-6nm | 20-30nm |
| Thick | Option A | TA | 15-20nm | 1nm |
| Thick | Option B | TB | 15-20nm | 3-4nm |
| Thick | Option C | TC | 15-20nm | 20-30nm |
| Extra Thick | Option A | EA | 25-50nm | 1nm |
| Extra Thick | Option B | EB | 25-50nm | 3-4nm |
| Extra Thick | Option C | EC | 25-50nm | 20-30nm |
More Information
| Coating |
Formvar/Carbon
|
|---|---|
| Grid Size | 3,05mm |
| Material |
Copper
|
| Material Symbol | Cu |
| Mesh Size |
1000 Mesh
|
| Mesh Style |
thin Bars, square
|
| Manufacturer |
EMS
|
