Specimen Holders for Critical Point Drying, various Sizes

Sample Holder for Critical Point Drying (CPD) machined from solid steel, brass/nickel plated, incorporates a stainless steel mesh top and bottom to allow for fluid exchange. Sample Holders are avaiable with mesh basket for bare tissue samples, for Coverslips and TEM-Grids.

Grouped product items
Product Name	Qty
4 Specimen Holder, each E70194-04 €765.90 €911.42
12 Specimen Holder, each E70194-12 €765.90 €911.42
24 Specimen Holder, each E70194-24 €765.90 €911.42

Product Details

Description

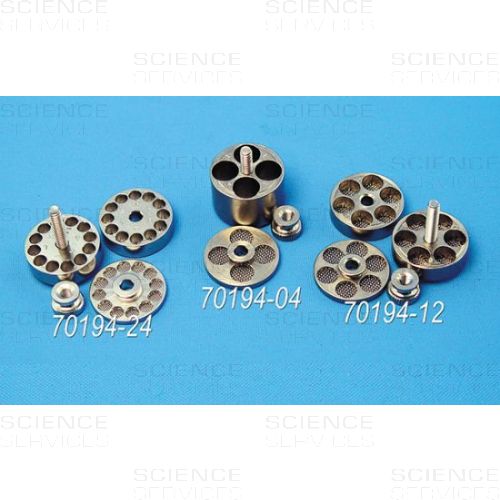

Available in three sizes:

12 Specimen holder: comes with two sections; each section holds 6 specimens into 6 cavities, each cavity measuring 7.5mm (D)x6mm(H). The overall unit measures: 24mm(D) x 24mm(H).

24 Specimen holder: comes with two sections; each section holds 12 specimens into 12 cavities, each cavity measuring 4.5mm(D) x 6mm(H). The overall unit measures: 24mm(D) x 28mm(H).

4 Specimen holder: comes with one section which holds 4 or multiples of or large samples 4-9mm(D)x16mm(H) cavities. The overall unit measures: 24mm(D)x28mm(H).
