Silicon Test Specimen on 12.5mm Pin Stub
P79502-12

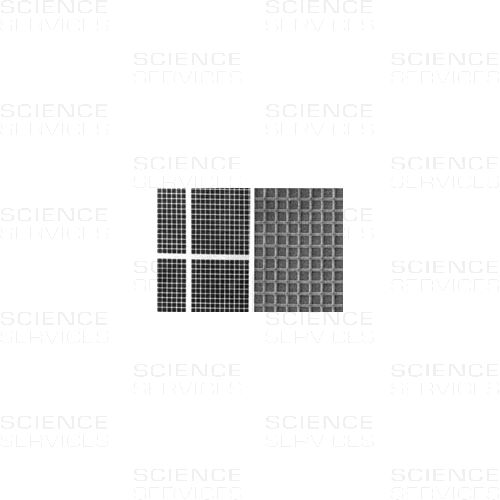

This Test Specimen is made of a 5x5mm square of single crystal silicon. It is photo-etched and the squares repeat every 10µm. The dividing lines are 1.9µm wide. A broader etching line is written every 500µm, which is useful in light microscopy.
€45.40
€54.03
Product Details
Description
Silicone Test Specimen
The test specimen consists of lines etched into a single crystal silicon substrate. They have been written by electron beam machinery, and consist of a square mesh of course lines of 500µm spacings with 50 intermediate fine lines of 10µm spacings.
The 10µm pitch has been measured using an automatic line width measuring system. The measurements obtained from wafer number ENG 1148-3 are shown below:
|
Position
|
Pitch Measurement µ
|
|
1
|
10.010
|
|
2
|
10.010
|
|
3
|
10.050
|
|
4
|
10.050
|
|
5
|
10.010
|
|
6
|
10.010
|
|
7
|
10.030
|
|
8
|
9.987
|
|
9
|
10.010
|
|
Max
|
10.050
|
|
Min
|
9.887
|
|
Mean
|
10.019
|
|
3 Sigma
|
0.059
|
More Information
| Application |
LM
SEM
|
|---|---|
| Type |
Calibration Standards
|
| Magnification | low magnification |
| Packing Unit | each |
