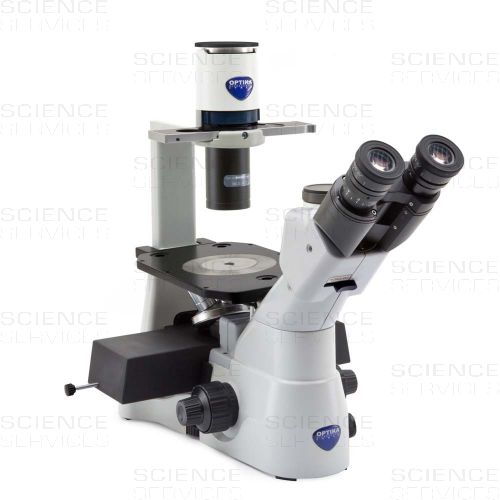

OPTIKA, IM-3 trinocular Inverted Microscopes, Routine Lab
OPIM-3
The IM-3 inverted microscope offers excellent optical quality and mechanical versatility for routine live cell examinations. It features brightfield and phase contrast as well as simple epi-fluorescence solutions. Its expandability with various accessories (objectives, holders, stage inserts, etc.) provides adaptability for different applications.
Product Details
Description
Inverted microscopes are useful for observing living cells or organisms at the bottom of a large container (e.g., a tissue culture flask) under more natural conditions than on a glass slide, as is the case with a conventional upright microscope.
IM-3 Series includes models for simultaneously brightfield and phase contrast methods, engineered and designed to be your ideal solution for fast and reliable routine inspections. When extended with an LED or HBO fluorescence, there is the additional option of examining fluorescent specimens.
More Information
| Focus | Coaxial coarse (adjustable tension) and fine focusing mechanism with limit stop to prevent the contact between objective and specimen. |
|---|---|
| Condensor | LWD pre-centered condenser, N.A. 0.30, W.D. 72 mm. With 4x/10x, 20x/40x phase contrast slider and brightfield. Removable to extend the working distance up to 150 mm. |
| Eyepieces | WF10x/22 mm, high eye-point and with rubber cups. |
| Head | Trinocular (2-position 100/0, 50/50), 45° inclined. |
| Illumination | X-LED8 with white 8 W LED (6,300K) with brightness control. With aperture diaphragm. Multi-plug 100-240Vac/6Vdc external power supply |
| Objective | IOS LWD W-PLAN PH 10x/0.25 IOS LWD W-PLAN PH 20x/0.40 IOS LWD W-PLAN PH 40x/0.65 - All with anti-fungus treatment. |
| Packing Unit | each |
| Stage | Fixed stage, 250×160 mm, with glass and metal stage inserts. |
| Manufacturer |
OPTIKA
|
