NIGHTSEA™ Add-on for Dino-Lite Digital Microscopes, various Filter Sets
Add-on for NIGHTSEA™ fluorescence adapter for Dino-Lite digital microscopes consisting of LED light source, emission filter ring and filter goggles with color coding for easy differentiation of the filter sets. Available for different wavelengths.
Product Details
Description
Compatible Dino-Lite models
The NIGHTSEA fluorescence solution is best suited for Dino-Lite models with a long working distance (LWD). High magnification Dino-Lite models have a very short working distance, meaning that good illumination of the sample cannot be guaranteed.
Compatible with the following Dino-Lite white light models:
- AF4915ZTL
- AM7115MZTL
- AM7915MZTL
- AM73915MZTL
The higher power of the NIGHTSEA system LEDs can supportively enhance performance of some Dino-Lite fluorescence models. Especially at longer working distances, when the intensity of the built-in Dino-Lite LEDs is not sufficient to provide fluorescence excitation of the sample.
And with the following fluorescent models:
- AM4117MT-G2FBW
- AF4115T-GRFBY
- AM4117MT-CFVW
- AF4515TL-FVW
- AF4515T-FVW

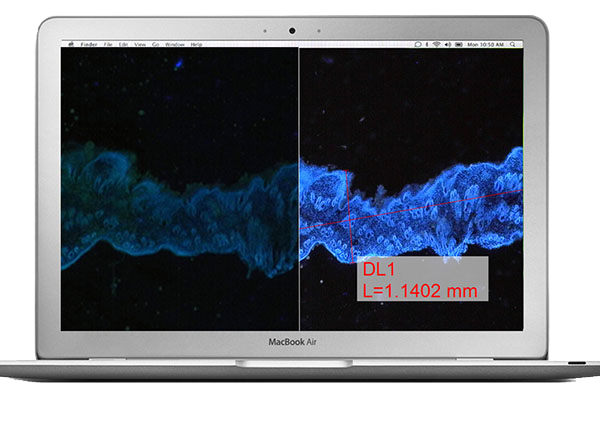

Dino-Lite AM4115T-CFVW, image made with Dino-Lite excitation (left), NIGHTSEA excitation (right)

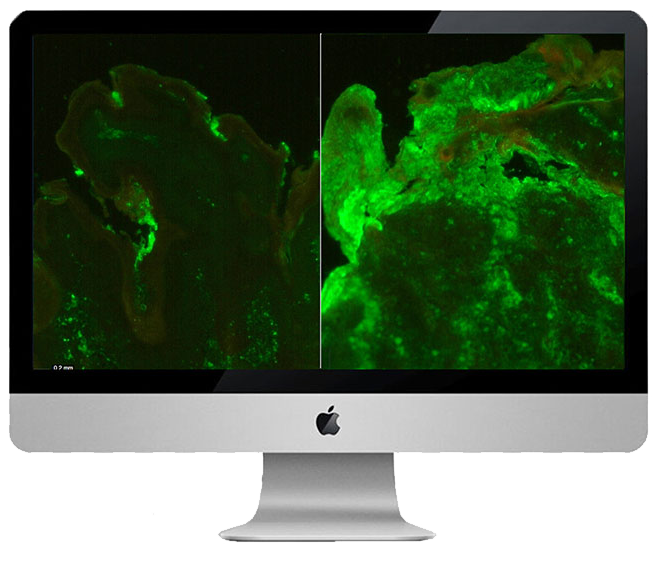

Dino-Lite AM4115T-GRFBY, image made with Dino-Lite excitation (left), NIGHTSEA excitation (right)

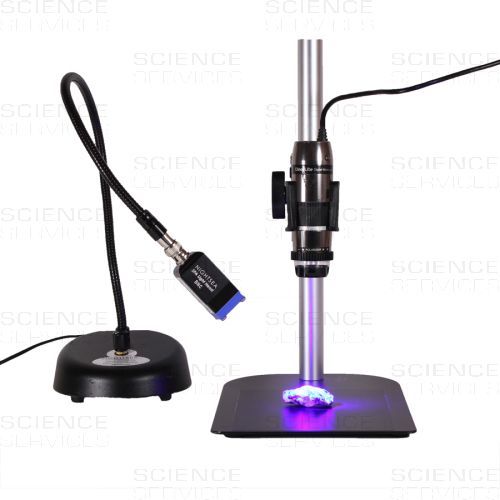

The NIGHTSEA™ fluorescence adapter for the Dino-Lite® digital microscope series is an easy alternative to add fluorescence to Dino-Lite microscopes. NIGHTSEA™ uses the latest LED technology and is available for different excitation/emission wavelengths. With a simple click system, filter sets can be changed in seconds.
NIGHTSEA™ is available for the following wavelengths:
| Filter Set | Color | Excitation | Emission Filter |
| UV | Ultra violet | 360 - 380nm | 415nm Long pass |
| VI | Violet | 400 - 415nm | 450nm Long pass |
| RB | Royal Blue | 440 - 460nm | 500nm Long pass |
| RB-GO | Royal Blue | 440 - 460nm | 500-560nm Band pass |
| CY | Cyan | 490 - 515nm | 550nm Long pass |
| GR | Green | 510 - 540nm | 600nm Long pass |
The wavelength sets are named, and color coded according to the color of the excitation light, not according to the color of the emitted fluorescence. The color coding ensures the use of the correct filter/LED head combination.
More Information
| Packing Unit | each |
|---|
-
€1,169.00 €1,391.11Art.Nr: DLAM7915MZTLThe Dino-Lite Edge 5MP AM7915MZTL is a long-working-distance LWD model with magnification of 10x – 140x with 5MP image resolution. Crisp image quality, software-based image enhancement (EDOF, EDR, AMR), built-in polarizer, interchangeable front caps and robust metal housing making it a versatile handheld microscope for a wide range of applications.
Features: 5 MP, LWD, EDOF, EDR, AMR, FLC, POL (EDOF/EDR on Windows PC only)
Compatible with N3C-R (Ring Light Cap)
€1,169.00 €1,391.11 -
€1,399.00 €1,664.81Art.Nr: DLAM73915MZTLThe Dino-Lite Edge 5MP AM73915MZTL is an all-in-one digital handheld microscope with long-working-distance (LWD), magnification of 10 - 140x and USB 3.0 connectivity for fast image transfer and smooth live imaging with a resolution of 5MP at 15 FPS or 1.3MP at 45 FPS. Crisp image quality, software-based image Enhancement (EDOF, EDR, AMR), built-in polarizer, interchangeable front caps and the robust metal housing are further features of this premium Dino-Lite model.
Features: 5 MP, LWD, EDOF, EDR, AMR, FLC, POL (EDOF/EDR on Windows PC only)
€1,399.00 €1,664.81 -
€759.00 €903.21Art.Nr: DLAM4115T-GFBWThe Dino-Lite Edge AM4115T-GFBW has a 1.3 MP CMOS sensor and allows magnifications from 20x to 220x. This digital microscope is optimized for acquisition of fluorescent objects using blue 480nm LEDs for excitation and a 510nm emission filter for visualization of green fluorescence (GFP, Alexa 488, etc.) in biology or material research. The built-in white-light LED enables focussing and locating the desired object.
Features: 1.3 MP, Fluorescence
€759.00 €903.21 -
€929.00 €1,105.51Art.Nr: DLAF4915ZTLThe Dino-Lite Edge 1.3MP AF4915ZTL is an all-in-one device with long-working-distance (LWD) and adaptable interface. It is designed for (professional) applications within 10-140x magnification. The crisp image quality making it a very versatile Dino-Lite device. Transform the AF4915ZTL from USB2.0 connection to a wireless microscope for field applications with the Wi-Fi streamer WF-20 (optional).
Features: 1.3 MP, LWD, EDOF, EDR, AMR, FLC, POL (EDOF/EDR on Windows PC only)
€929.00 €1,105.51 -
€929.00 €1,105.51Art.Nr: DLAM7115MZTThe all-in-one Dino-Lite Edge 5MP AM7115MZT digital microscope has a wide magnification range from 20x to 220x, 5MP image sensor and cutting-edge optics. The crisp image quality, the built-in polarizer, interchangeable front caps and the robust metal housing making it a very versatile Dino-Lite device for a wide range of applications.
Features: 5 MP, AMR, FLC, POL
€929.00 €1,105.51 -
€929.00 €1,105.51Art.Nr: DLAM7115MZTLThe Dino-Lite Edge 5MP AM7115MZTL is the long-working-distance version of the AM7115MZT. This digital microscope has a wide magnification range from 10X to 140X, 5MP image sensor and cutting-edge optics. The crisp image quality, the built-in polarizer, interchangeable front caps and the robust metal housing making it a very versatile Dino-Lite device for a wide range of applications.
Features: 5 MP, LWD, AMR, FLC, POL
€929.00 €1,105.51 -
Starting at €1,952.00 €2,322.88
The NIGHTSEA™ Fluorescence Adapter enables fluorescence imaging with the Dino-Lite® digital microscope series.
The modular design allows easy switching between excitation/emission wavelengths. The broad excitation spectrum gives a wide range of applications from biology to geology and material research.
For large working distances, the Nightsea adapter is also recommended for Dino-Lite fluorescence models to optimize fluorescence excitation.
Starting at €1,952.00 €2,322.88
