NIGHTSEA Light Head Adapter for Keyence VHX Z100 lens, each

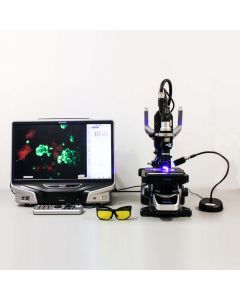

The NIGHTSEA ™ Fluorescence Adapter extends the Keyence VHX series into a multifunctional fluorescence microscope - without modifying the microscope itself. The quick-install modular system is suitable for the Keyence VH-ZST lens.

Fluorescence is provided by dimmable LED illumination with slot emission filters. An additional adapter allows direct coupling of the excitation light into the fiber optic port of the VH-ZST lens. Available for various wavelengths.

The NIGHTSEA ™ Fluorescence Adapter extends the Keyence VHX series into a multifunctional fluorescence microscope - without modifying the microscope itself. The quick-install modular system is suitable for the Keyence VH-Z50 and VH-Z100 lens.

Fluorescence is provided by dimmable LED illumination with slot emission filters. An additional adapter allows direct coupling of the excitation light into the fiber optic port of the VH-Z50 and VH-Z100 lens. Available for various wavelengths.

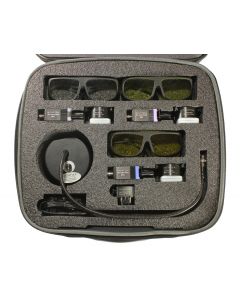

The NIGHTSEA Industry Kits contain 3 excitation wavelengths and are available for the following Keyence VHX series lenses: VH-Z00, VH-Z20, VH-Z50, VH-Z100, VH-Z500, VH-ZST, VHX-7100 FI Head.

Depending on the lens type, a slot emission filter (VH-Z50, VH-Z100, VH-Z500, VH-ZST, VHX-7100 FI Head) or a ring emission filter (VH-Z00, VH-Z20) is used. Adapters for VH-Z50, VH-Z100, VH-Z500, VH-ZST objectives have been developed to enable direct coupling of the excitation light to the fiber optic port of the objective. Kits contain excitation light heads and emission filters for UV, Violet and Royal blue wavelengths and are available in various configurations.

Also available for objectives VH-E20, -E100 of VHX-7100 Fully Integrated (FI) Head.
