Linkam FTIR Stages, < -195°C to 600°C

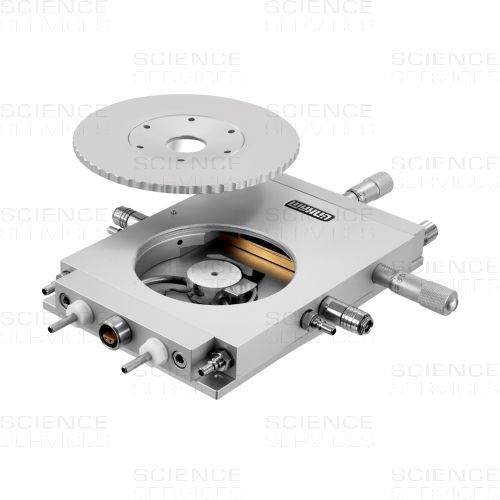

The FTIR600 stage can be mounted horizontally for IR microscopy setups and vertically for cabinet type IR spectroscopy. The silver block has a tapered hole to allow maximum transmittance of IR without interference.

The FTIR600 stages have been designed to be used in applications where rapid heating/cooling rates and high levels of accuracy and stability are required, and are supplied in three standard versions:

• FTIR600 for horizontal mounting to IR microscopes.
• FTIRSP600 for vertical mounting in horizontal IR beam spectrometers, incorporating a vertical sample holder and detachable base plate for either free-standing or attachment to a bracket in the spectrometer chamber.
• FTIR600MSO for mounting onto a motorised table with a 160 x 110mm recess.

FTIR600 Infra Red Systems Specifications

• Temperature range < -195°C to 600°C
• heating rates up to 150°C/min
• Fast cooling rates up to 100°C/min
• Temperature stability < 0,01°C
• 16mm XY sample manipulation
• Sample area 22mm diameter
• Quick-release gas valves for atmospheric control
• Compatible with most IR systems.
• 100 Ohm platinum resistor sensor
• Light aperture 3mm diameter for high accuracy control
• Silver heating block for high thermal conductivity
• Direct injection of the coolant into the silver block
• Range of IR transparent windows available
• Objective lens working distance 4.8mm
• Can be used with all optical microscope techniques
• The stage body can be cooled with a water cooling pump for high temperature work (>300°C)
• Suitable for confocal, Laser Raman and X-ray
• Stage body size 135mm x 92mm x 21.7mm

Some FTIR sample windows such as KBR and ZnSe maybe up to 0.5mm and not 0.2mm as shown in diagram.

If you are using a light microscope, please gask for the STAGE CLAMPS options to check your microscope is compatible.

For information on transmitted light applications, please ask for the CONDENSER EXTENSION LENS options.

For automatic cooling the sample below ambient temperature down to -195C you will need the LNP96 - Liquid Nitrogen Cooling Systems.

More models and configurations available. For more information and support please contact us!
