HPF Carrier, Ø3mm, Standard, Typ A, Typ B, Typ C, Aluminium

High-Pressure-Freezing (HPF) specimen carriers made of aluminum with standard thickness suitable for the following high-pressure-freezers: HPM-010, Compact 01, 02, 03, HPM 100, Leica EM ICE, Leica EM PACT1 und 2.

The carriers (planchets) are available in Type A, B and C. Packing unit 50, 100 or 200 pieces.

Grouped product items
Product Name	Qty
HPF Carrier, Standard, Type A (Ø3 x 0,50mm, recess 0,3mm), Aluminium, 50 pieces W241050 €120.00 €142.80
HPF Carrier, Standard, Type A (Ø3 x 0,50mm, recess 0,1 / 0,2mm), Aluminium, 100 pieces W241100 €230.00 €273.70
HPF Carrier, Standard, Type A (Ø3 x 0,50mm, recess 0,1 / 0,2mm), Aluminium, 200 pieces W241200 €440.00 €523.60
HPF Carrier, Standard, Type B (Ø3 x 0,50mm, recess 0,3mm), Aluminium, 50 pieces W242050 €104.00 €123.76
HPF Carrier, Standard, Type B (Ø3 x 0,50mm, recess 0,3mm), Aluminium, 100 pieces W242100 €205.00 €243.95
HPF Carrier, Standard, Type B (Ø3 x 0,50mm, recess 0,3mm), Aluminium, 200 pieces W242200 €400.00 €476.00
HPF Carrier, Standard, Type C (Ø3 x 0,50mm, recess 0,15 / 0,15mm), Aluminium, 50 pieces W353050 €120.00 €142.80
HPF Carrier, Standard, Type C (Ø3 x 0,50mm, recess 0,15 / 0,15mm), Aluminium, 100 pieces W353100 €230.00 €273.70
HPF Carrier, Standard, Type C (Ø3 x 0,50mm, recess 0,15 / 0,15mm), Aluminium, 200 pieces W353200 €440.00 €523.60

Product Details

Description

Die Carrier sind in drei verschiedenen Typen A, B und C erhältlich, die sich in der Anzahl und Tiefe der Carrier-Vertiefungen unterscheiden.

Carrier Typ A: Durchm. 3 mm × 0,50 mm; Vertiefung 0,1 / 0,2 mm
Carrier Typ B: Durchm. 3 mm × 0,50 mm; Vertiefung 0,3 mm
Carrier Typ C: Durchm. 3 mm × 0,50 mm; Vertiefung 0,15 / 0,15 mm

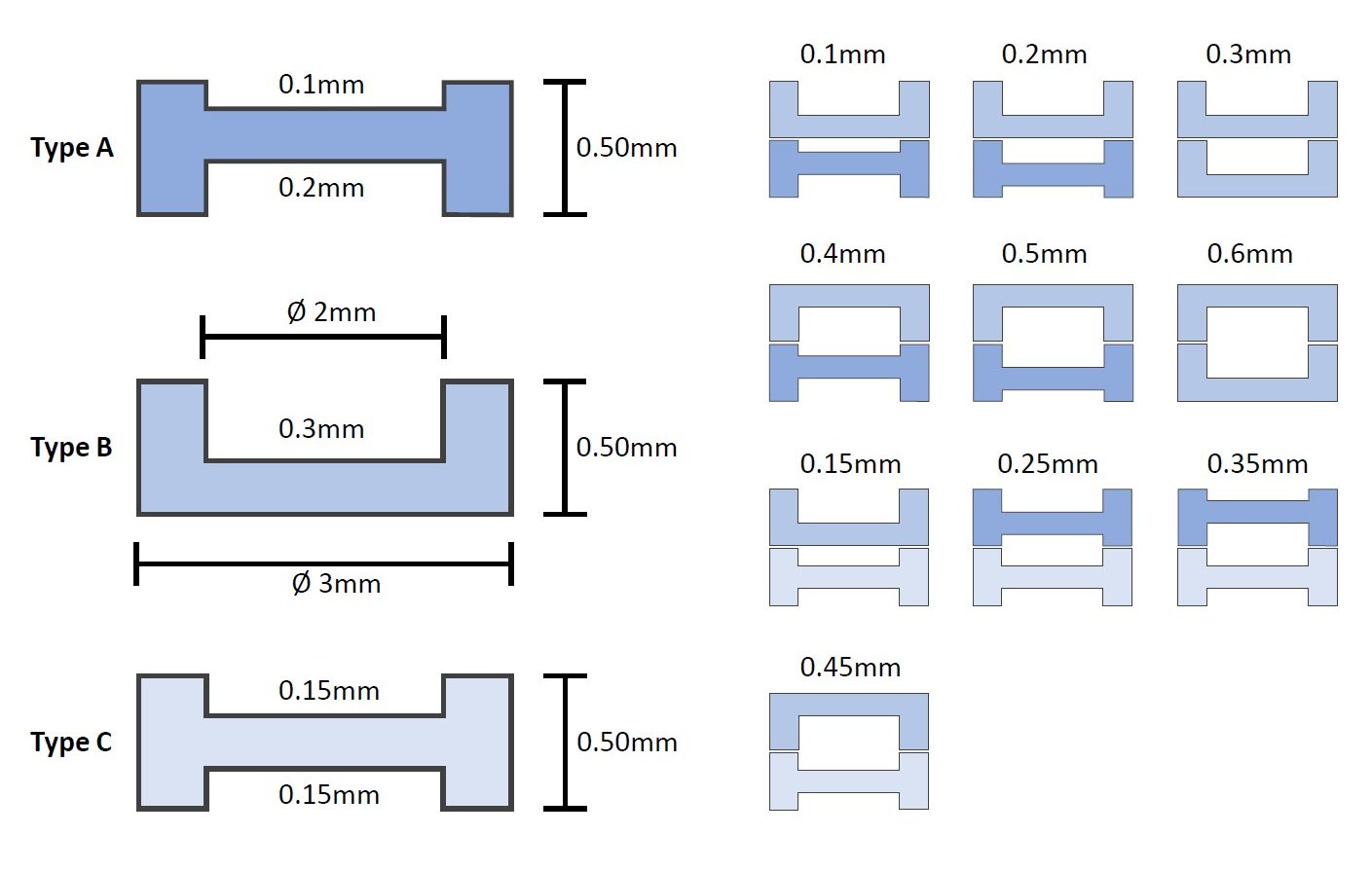

HPF Carrier, 3mm Durchmesser, Standard, Typ A, Typ B, Typ C, Aluminium - Skizze

Die Carrier sind für folgende Hochdruckgefriergeräte (HPF) geeignet:
ABRA Fluid HPM-010, Compact 01, 02, 03, HPM100, Leica EM ICE, Leica EM PACT1 und 2.

More Information

More Information
Form	round
Application	EM
Material	Aluminum
Dimensions	Diameter: 3mm, Height: 0.50mm
Packing Unit	50, 100, 200 Stück

HPF Carrier, Ø3mm, Standard, Typ A, Typ B, Typ C, Aluminium
