Gradient Station™ Base Unit
B153-002
Product Details
Description
This hybrid instrument performs both gradient forming and fractionating.
The Gradient Station™ is a combination of Gradient Master™ and the Piston Gradient Fractionator™ in one compact, fully functional system. One element forms linear density gradients and the other fractionates them after centrifugation.
The performance of these two elements, is identical to the original instruments.
Whether you use them separately or in the hybrid Gradient Station™, the combination of the Gradient Master™ and the Piston Gradient Fractionator™ offers a quantum leap in speed, reproducibility and resolution.
Gradient Mixing
- Easy and Fast
- Highly reproducible
- Patented tilted-tube-rotation
- Large variety of predefined protocols
- Durable, robust construction
- Interchangeable tube holders for all common tube size
- Also suitable as blotting device for Southern-, Western- and Northern-blots
Fractionation
- Clean and easy fractionation
- High precision and reproducibility
- No puncturing of the tube
- High resolution by patented TrumpetTM Tip system
- Illumination system to visualize bands
- Cleaning in between fractions
- Integration of UV/VIS measuring cell (optional)
- Integration of Fraction Collector (optional)
- Interchangeable tube holders for all common tubes
Tube holders are not included in the base unit and need to be purchased separately.
For more informations, see our data sheet.
Needed Accessories
- MagnaBaseTM Tube Holder
- PGF Tube Holder
- Piston tip
- Cursor
- Marker Block
- Caps for centrifuge tubes (short/long Caps)
Included
- Combined Gradient MasterTM and Piston Gradient FractionatorTM Base Unit with all tools an spare parts
Gradient Station can be equipped with:
- Fraktion Collector
- TriaxTM Flow Cell (measuring cell for UV/VIS)
- PC (recording UV/VIS spectra)
Technical Data
| Voltage | 220-240V (CE certified) |
| Dimensions | 558,8mm x 254mm x 558,8mm (W/D/H) |
| Weight | 23,6kg |
More Information
| Manufacturer |
BioComp
|
|---|---|
| Type |
Base Unit
|
| Weight | 0.000000 |
-
€150.90 €179.57Art.Nr: S7010Polyclear: Thin wall and transparent, punctureable and sliceable, equivalent to Beckman Ultra-Clear Tubes, molded stress-free, use with Cesium Chloride gradients.€150.90 €179.57 -
€150.90 €179.57Art.Nr: S7011Polyclear: Thin wall and transparent, punctureable and sliceable, equivalent to Beckman Ultra-Clear Tubes, molded stress-free, use with Cesium Chloride gradients.€150.90 €179.57
-
€150.90 €179.57Art.Nr: S7022Polyclear: Thin wall and transparent, punctureable and sliceable, equivalent to Beckman Ultra-Clear Tubes, molded stress-free, use with Cesium Chloride gradients.€150.90 €179.57
-
€234.10 €278.58Art.Nr: S7030Polyclear: Thin wall and transparent, punctureable and sliceable, equivalent to Beckman Ultra-Clear Tubes, molded stress-free, use with Cesium Chloride gradients.€234.10 €278.58
-
€234.10 €278.58Art.Nr: S7031Polyclear: Thin wall and transparent, punctureable and sliceable, equivalent to Beckman Ultra-Clear Tubes, molded stress-free, use with Cesium Chloride gradients.€234.10 €278.58
-
€216.60 €257.75Art.Nr: S7042Polyclear: Thin wall and transparent, punctureable and sliceable, equivalent to Beckman Ultra-Clear Tubes, molded stress-free, use with Cesium Chloride gradients.€216.60 €257.75
-
€245.00 €291.55Art.Nr: S7052Polyclear: Thin wall and transparent, punctureable and sliceable, equivalent to Beckman Ultra-Clear Tubes, molded stress-free, use with Cesium Chloride gradients.€245.00 €291.55
-

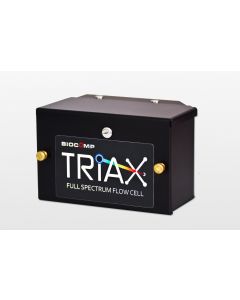

Art.Nr: BFC-1C-1 is the single wavelength version. The flow cell can be configured to record UV or fluorescence, allowing overlay of separate UV and VIS scans. Wavelength and fluorophore changes are made by changing the LEDs, photodiodes and filters.
-
Art.Nr: BFC-2FC-2 allows two input wavelengths so the UV and VIS scans are obtained in the same gradient. Another use is the dual UV scan at 260 and 280 nm, providing a 260/280 ratio that reflects the change in nucleotide/protein composition of a particle.
-
Art.Nr: BFC-3FC-3 is used for three wavelength scans, one or two for UV scans and the other one or two for the VIS scans. Up to three wavelengths can be recorded simultaneously in the same gradient. All three LEDs are driven and tuned simultaneously by using the Triax™ software.
-
Starting at €517.00 €615.23

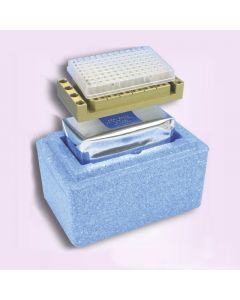

A versatile, smart and effective benchtop cooling and storage system. It uses cool bricks for temperature stability of up to 10 hours and cooling chambers made of solid anodized aluminium with inserts for reaction vessels in various designs from 0.2 to 5 ml and microtiter plates (96 and 384).
Each complete CoolSafe™ System includes
1 CoolSafe™ box with lid, 1 Cool Chamber and 2 Cool Bricks (1°C & -10°C)Starting at €517.00 €615.23
-
Starting at €685.50 €815.75

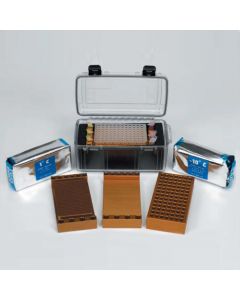

A versatile, smart and effective benchtop cooling and storage system. It uses cool bricks for temperature stability of up to 10 hours and cooling chambers made of solid anodized aluminium with inserts for reaction vessels in various designs from 0.2 to 5 ml and microtiter plates (96 and 384).
- Additional sample protection
- Smaller bench-top footprint
- Improved portability
- Clear lid for sample visibility
Each complete CoolSafe Deluxe system includes: a CoolSafe Deluxe box, a Cool Chamber and 2 Cool Bricks (1°C & -10°C).
Starting at €685.50 €815.75
