Disc Aperture for JEOL electron microscopes, D 50µm

E46050-Pt

Material: Pt, Aperture Diameter: 50µm, Dimensions: 6mm, Thickness: 0,24mm
€284.20 €338.20

Product Details

Description

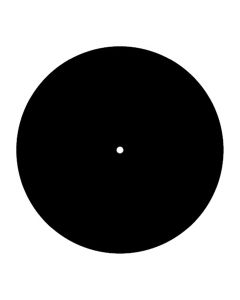

Platinum Disc, Drilled Apertures

Platinum apertures are easily cleaned by either an aperture flamer or over a bunsen burner in the open air. We maintain a wide variety of Platinum Drilled Apertures in stock with different configurations suiting all of your needs.

Platinum Apertures size tolerances vary as follow:

  • Nominal hole diameter +/- 1 micron
  • Disc diameter +/- 10microns
  • Disc thickness +/- 10microns

More Information

More Information
Type
Disc Apertures
Aperture Diameter
0-50µm
Dimensions 6mm
Material
Pt
Packing Unit each
Used with
JEOL
