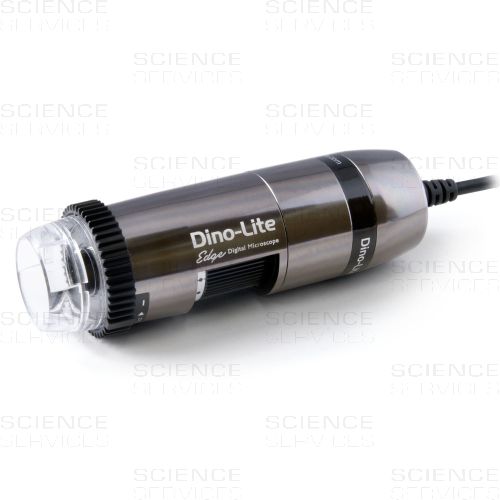

Dino-Lite Edge 5MP AM7915MZTL, each
DLAM7915MZTL
The Dino-Lite Edge 5MP AM7915MZTL is a long-working-distance LWD model with magnification of 10x – 140x with 5MP image resolution. Crisp image quality, software-based image enhancement (EDOF, EDR, AMR), built-in polarizer, interchangeable front caps and robust metal housing making it a versatile handheld microscope for a wide range of applications.
Features: 5 MP, LWD, EDOF, EDR, AMR, FLC, POL (EDOF/EDR on Windows PC only)
Compatible with N3C-R (Ring Light Cap)
Product Details
Description
High optical resolution
The superior optics adopted in the Edge series reveal fine details for most demanding microscopy applications.
5.0 Megapixels
Thanks to the low loss MJPEG compression, the advanced CMOS image sensor allows to transmit fluid and crisp image with resolution up to 2592x1944.
Flexible LED Control (FLC)
The FLC maximizes illumination flexibility by offering independent on/off control of the four LED quadrants in addition to the 6 intensity level adjustment.
Automatic Magnification Reading (AMR)
Without stopping and checking the magnification for measurements, the AMR detects the magnification rate automatically, for more efficient, accurate, and pleasant measurements.
Extended Depth of Field (EDOF)
Viewing rough surface with height range out of depth of focus, the EDOF can take several images at different focus and stack them automatically within a click.
Extended Dynamic Range (EDR)
Observing high contrast or reflective surface, the EDR can help to reveal the details of dark or bright areas by stacking images taken at different exposure levels.
Long-Working-Distance (LWD) optics
The LWD optics yields more working space between the object and the microscope, making it ideal for applications such as repairing or assembly.
Adjustable polarizer
The built-in adjustable polarizer allows to remove freely the unwanted reflection or glare from the object surface for a better contrast.
Scroll Lock
The scroll lock ensures the focus knob staying at the desired focus or magnification position without worry of unintentional movement.
Robust housing
The metal housing made of aluminium alloy offers compelling advantages of protection and endurance.
Interchangeable caps
The interchangeable caps provide adaptability to numerous applications with alternative lighting or object interface, such as but not limited to diffused-light, ringlight, and coaxial-light etc.
| Model | AM7915MZTL Dino-Lite Edge |
| Interface | USB 2.0 |
| Product Resolution | 5M pixels (2560x1920) |
| Magnification | 10x~140x |
| Frame Rate |
10fps in 5MP/3MP/2MP, MJPEG |
| Save Formats |
Image: Video: |
| Polarizer | Yes |
| Microtouch | Yes |
| Lighting | 8 white LEDs |
| Operating System Supported | Windows 7/8/10/11 macOS 10.14 or later (EDOF/EDR/DPQ are NOT controllable on macOS) |
| System Requirements | ‧ Intel Core2 Duo @ 2.20 GHz/AMD Athlon X2 Dual Core BE-2400 (2.3GHz) ‧ 20GB available HD space ‧ 4GB available RAM or more ‧ 2GB video card or more ‧ CD-ROM drive for installation ‧ USB 2.0 |
| Calibration Function | Yes |
|
Measurement Function |
Yes |
| Unit Dimension | 10.5cm (H) x 3.2cm (D) |
| Unit Weight | 138g |
More Information
| Packing Unit | each |
|---|---|
| Manufacturer |
Dino-Lite
|
-
