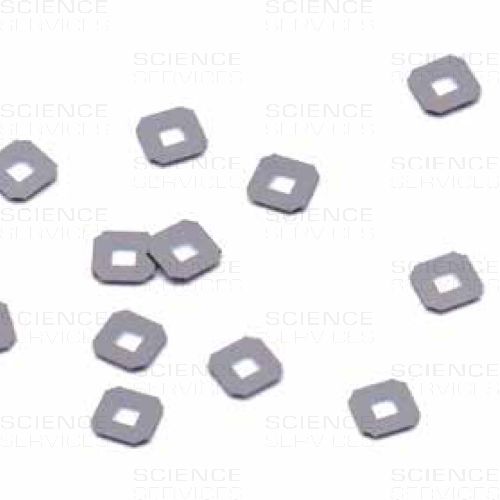

Continuous Silicon Nitride Film TEM Window Grids, array

Silicon frames are 100µm thick. Grids fit standard 3mm holders and most double tilt holders.
Thicknesses available are 5, 10, 15, 20, 30, 50, 100 and 200 nm, window sizes are squares of 0,01mm, 0,025, 0,05, 0,1, 0,15, 0,25, 0,5, 1mm or arrays.

Grouped product items
Product Name	Qty
SiN TEM Window Grids, 9 windows, 0,1x0,1mm, 50nm film, 10/pk E76042-50 €236.00 €280.84
SiN TEM Window Grids, 2 windows, 0,05x1,5mm, 5nm film, 10/pk E76042-45 €481.10 €572.51

Product Details

Description

Features

Plasma Cleanable - can be vigorously plasma cleaned to remove organic contamination
High Temperature Tolerance - resist temperatures up to and above 1000°C
Mechanical Robustness - withstand harsh conditions
Flat, insulating and hydrophobic - incorporates LPCVD, low-stress(~250MPa), non-stoichiometric silicon nitride
Chemically Inert - resistant to bases, acids (except HF) and solvents
High Beam Current Tolerant
Carbon-Free and Ultra-Clean
Good X-ray transmission performance
Compatible - fit standard 3mm TEM grid holders, octagonal shape

Uses:

Environmental TEM (dynamic processes at high temperatures)
Nanoparticle imaging
Analysis of nano materials, semiconductor materials, optic-crystal materials, functional film materials etc.
(Quantitative) Carbon Analysis (photoresist, polymers, food, oil, fuel etc.)
Crystal growth research
X-Ray microscopy and X-Ray spectroscopy techniques
Thin film research
In-situ characterization of chemical reactions and annealing effects
Biological sample observation thanks to superior biocompatibility: on-film growth of cells or other biological samples
Characterization experiments of colloids, aerogels, organic materials and nanoparticles

Recommended Use

	SiN film thickness	Product examples and window sizes
Highest Resolution Imaging	5nm	E76042-43, 1 square (0,025mm) E76042-44, 8 squares (0,05mm), 1 slot (0,05x0,1mm) E76042-45, 2 slots (0,05x1,5mm)*
High Resolution	10nm	E76042-46, 8 squares (0,1mm), 1 slot (0,1x0,35mm) E76042-47, 8 squares (0,25mm), 1 slot (0,25x0,5mm) YSG010Z, 1 square (0,1mm) YSG015Z, 1 square (0,15mm) YSG025Z, 1 square (0,25mm) YSG050Z, 1 square (0,5mm) YSAR010Z, 9 squares (0,1mm)
Everyday Imaging	20nm	YSG001AT, 1 square (0,01mm) E76042-48, 8 squares (0,1mm), 1 slot (0,1x0,35mm) E76042-49, 1 square (0,5mm) E76042-50, 9 squares (0,1mm)
Demanding Conditions	50nm	E76042-53, 1 square (0,1mm) E76042-52, 1 square (0,5mm) E76042-51, 1 square (1mm) YSTA015C, 2 slots (0,1x1,5mm) E76042-50, 9 squares (0,1mm)
Suspension Materials & Cryo-TEM	Microporös, nanoporös	E76042-41, 1 square (0,5mm) E76042-40, 1 square (0,5mm) YSME050B, 1 square (0,5mm), 2,8μm holes YSME050C, 1 square (0,5mm), 2,0μm holes YSME050C10, 1 square (0,5mm), 10μm holes YSME050E05, 1 square (0,5mm), 5μm holes YSNP-TE025B, 1 square (0,25mm), 20-200nm holes, 50nm SiN YSNP-TE010D, 1 square (0,1mm), 20-200nm holes, 200nm SiN
