C-Chip, Disposable Counting Chambers, 2 oder 4 chambers, 50 pieces
Developed to solve problems of conventional glass hemocytometers, C-Chip offers precise volume control and is easy to use. It is made of high-grade optical plastic and contains two or four counting chambers with a clear grid pattern.
• No coverslip required • No need to wash for reuse • No more contact to hazardous materials • Accurate and reliable • Made from quartz grade optical plastic
Product Details
Description
C-Chip™ Disposable Counting Chamber
The world's first truly disposable Counting Chamber, the C-Chip™ offers precise volume control and is easy to use.
Features
- Quartz grade optical plastic
- Precise design leads to highly reproducible results
- Two counting chambers fitted with clearest grid pattern rich in contrast
- Exposure to infectious material is reduced due to its closed system
- Continuous sample containment - Light and unbreakable compared to glass
- No need for cover slips
- Time and cost saving
- For single use
Applications
- Blood Analysis: Blood Cell Counting
- Cell Culture: Cell Concentration measurement / Cell Viability Test
- Microbiology: Bacteria and Fungal Spore Counting
- IVF, IUI: Sperm Counting
Accuracy & Repeatability

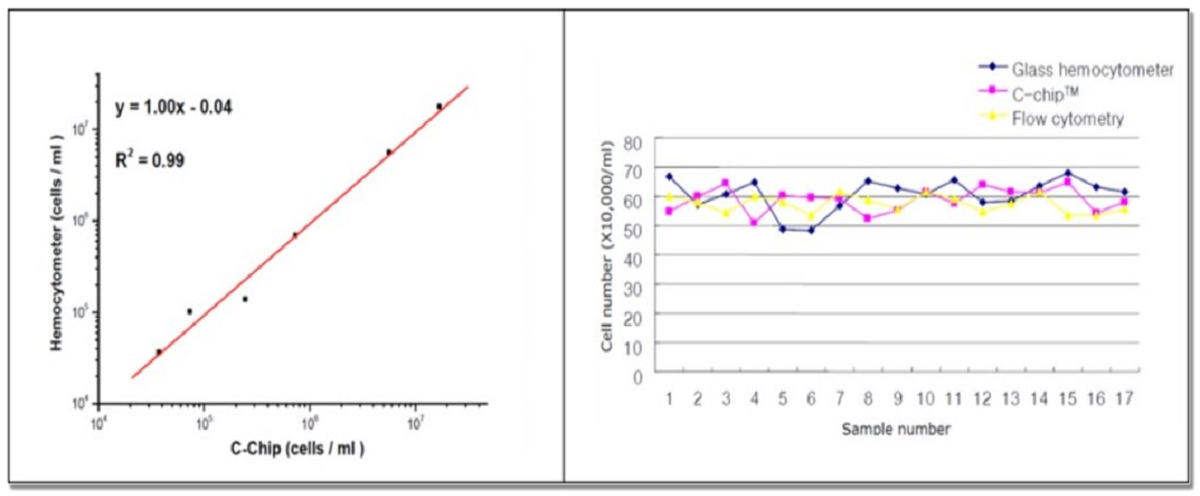

The graph on the left shows an excellent correlation of cell counting between glass hemocytometer and C-Chip. The graph on the right shows that C-Chip has less error of cell counting than glass hemocytometer due to the smaller standard deviation.
Specifications of C-Chip Disposable Hemocytometers
(all have a size of 25x75x1.6mm)
| Order No. | Tests per slide | Grid type | Chamber depth (µm) | Loading volume (µl) | Applications (examples) |

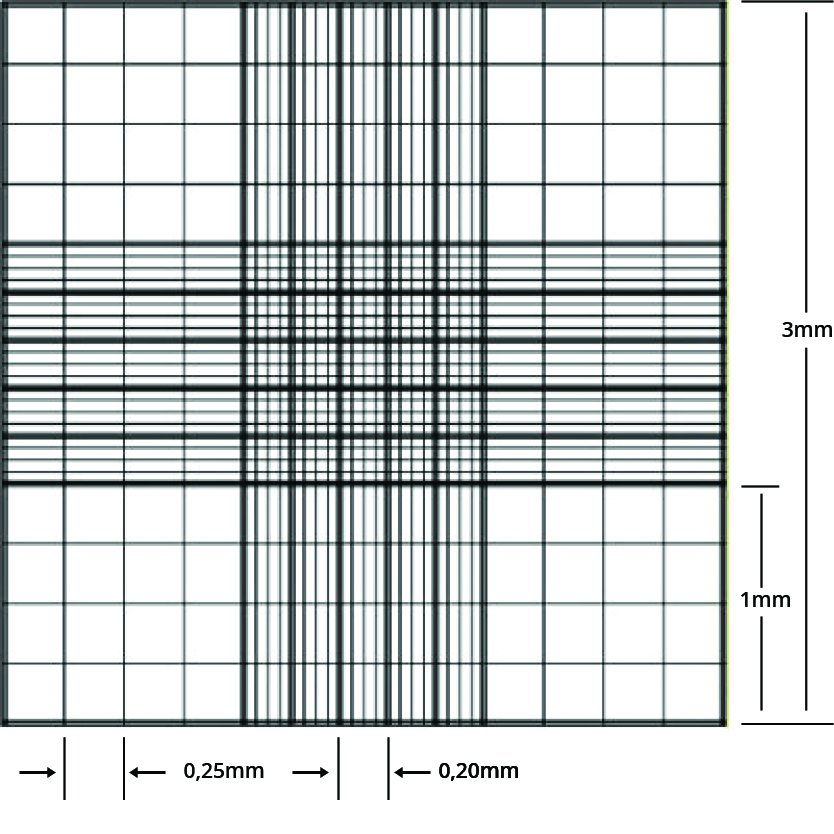

| NE63508-01 | 2 | Neubauer Improved | 100 | 10 | leucocytes and erythrocyte counting, viability |
| NE-C-Chip4 | 4 | Neubauer Improved | 100 | 10 | leucocytes and erythrocyte counting, viability |

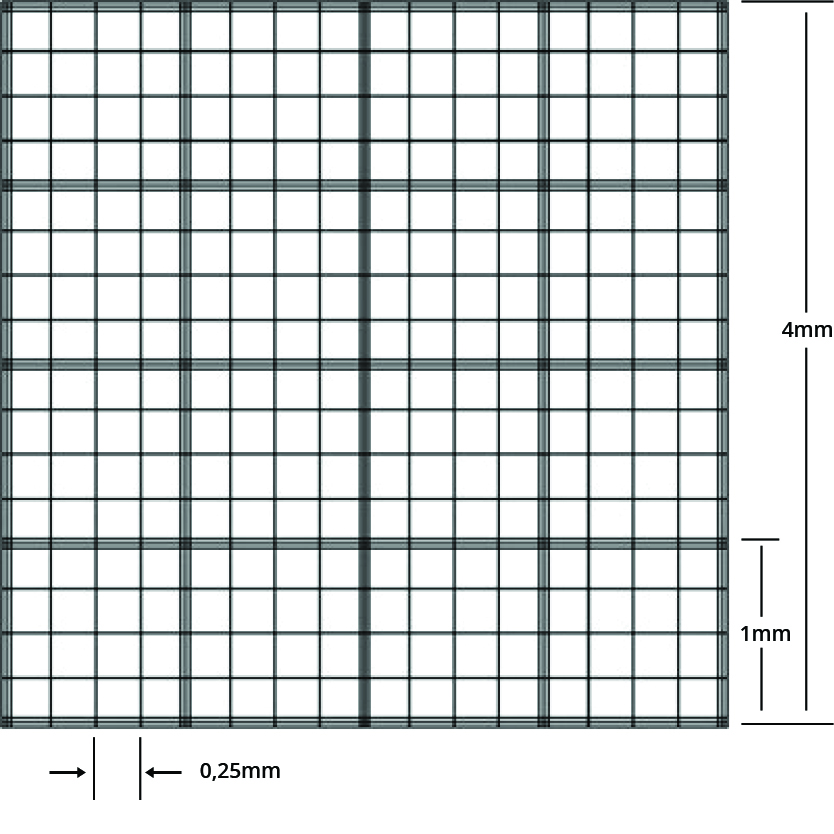

| NE63508-03 | 2 | Fuchs-Rosenthal | 200 | 20 | cell suspensions with few cells (e.g. cerebro-spinal fluid), blood analysis/IVD |

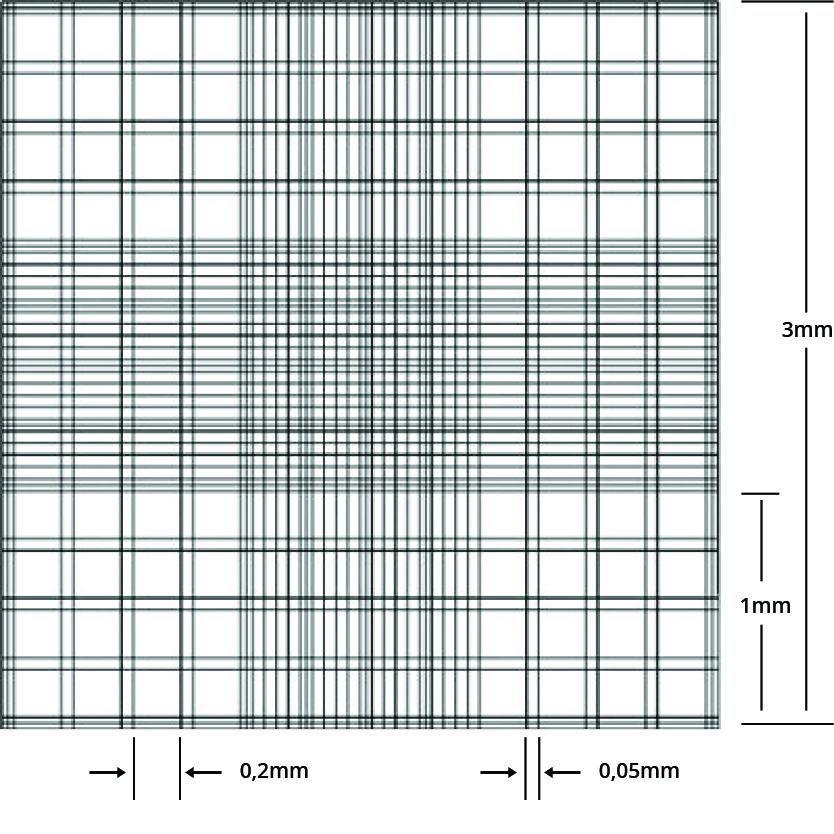

| NE63508-07 | 2 | Bürker-Türk | 100 | 10 | blood tests and urine analysis |
| NE63508-10 | 2 | Malassez | 200 | 20 | nematode counting, cells in cerebro-spinal fluid |
More Information
| Dimensions | 25(B) x 75(L) x 1,6(T)mm |
|---|---|
| Packing Unit | 50 Stück |
| Manufacturer |
NanoEnTek
|
